Carbon Steel Long Weld Neck Flange , Sch 40 Weld On Steel Pipe Flanges

Brand Name : ZZ

Model Number : ASTM A105

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, D/P, D/A, L/C

Supply Ability : 50000 PCS Per Month

Delivery Time : 10-20 Days

Packaging Details : Cartons and Wooden Cases, LCL, 20ft Container

Connection : Butt Weld

Size : 1/2" - 24"

Pressure : Class 150, 300, 600, 900, 1500, 2500. 150# - 2500#

Products : Slip-on Flange, Weld Neck Flange, Blind Flange, Socket Weld Flange, Threaded Flange, Plate Flange, Lap Joint Flange

Standard : ANSI, DIN, JIS, BS, ASME

Packing : Plastic Foam, Wooden Cases, Pallets

Color : Customer Required, Natural, Primary

Surface : Electrical Galvanized, Black Primer, PE Coating, Anti-rust Oil

Contact Now

Carbon Steel Weld Neck Flange 6" 150# RF Sch40 ASTM A105 ASME B16.5

Carbon Steel Weld Neck Flange

Top quality manufacturer of forged fittings and flanges Zizi which supplies Carbon Steel Weld Neck Flange 6 Inch 150# Sch 40 ASTM A105 ASME B16.5 for Peru Market.

A weld neck flange is a type of flange which also known as a high-hub flange and tapered hub flange. They have two designs that regular and long weld neck flange. Since the inside diameter of the flange must match that of the pipe, the flange bore should be specified in ordering.

Class 150 Weld Neck Flange Dimensions

Size	1/2" - 24"
Pressure	Class 150, 300, 600, 900, 1500, 2500
Standard	ASME B16.5
Flange Types	Slip-on Flange, Weld Neck Flange, Blind Flange, Socket Weld Flange, Threaded Flange, Plate Flange, Lap Joint Flange
Seal Types	RF, FF, RTJ
Stainless Steel	ASTM A182 F304/304L, F316/316L, F321, F317,F310
Duplex Steel	ASTM A182 F51, F53, F5
Carbon Steel	ASTM A105N, A350 LF2/LF3
Alloy Steel	ASTM A182 F1, F5, F9, F11, F12, F22, F91

Carbon Steel Long Weld Neck Flange , Sch 40 Weld On Steel Pipe Flanges

ASTM A105 Chemical Composition

C	Mn	P	S	Si	Cr	Ni
0.35	0.6-1.1	0.035	0.04	0.1-0.35	0.3	0.4

ASTM A105 Mechanical Properties

Tensile Strength	Yield Strength	Elongation
485 (Mpa)	250 (Mpa)	22 (%)

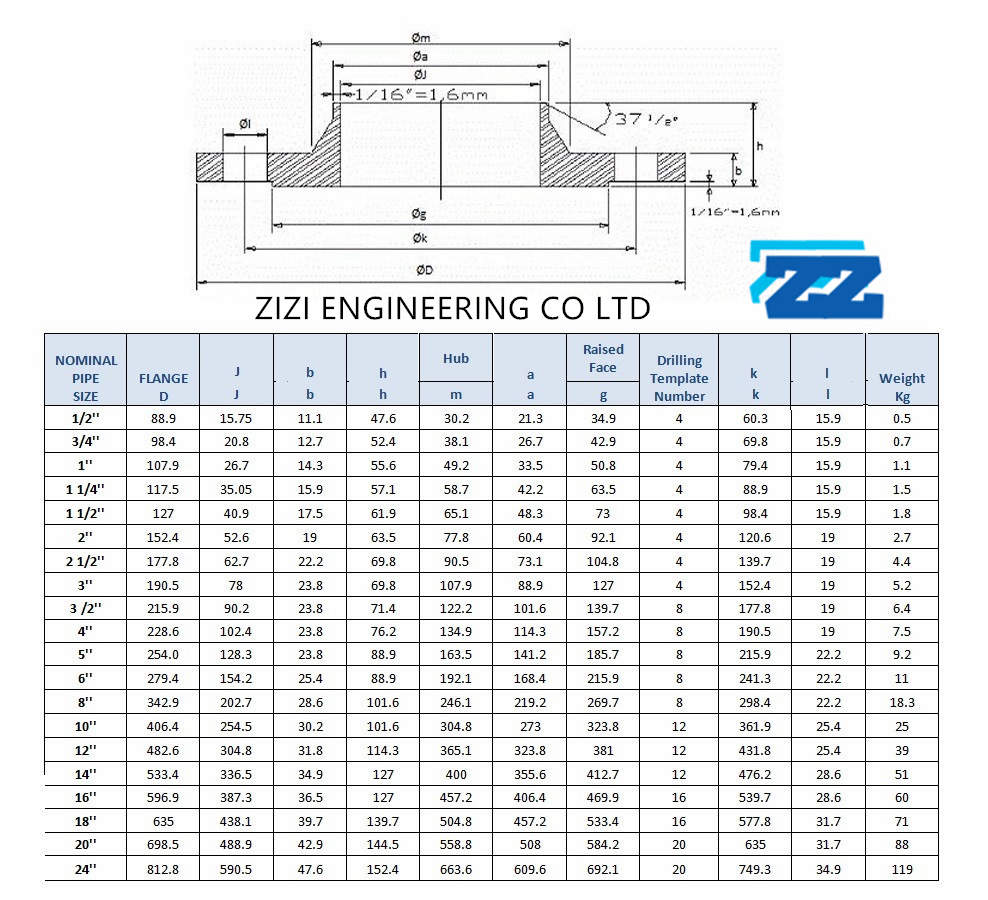

Weld Neck Flange Weight Chart

Carbon Steel Long Weld Neck Flange , Sch 40 Weld On Steel Pipe Flanges

Package of 6" Weld Neck Flange

Carbon Steel Long Weld Neck Flange , Sch 40 Weld On Steel Pipe Flanges

Marked with Grade, Lot No, Size, Standard and Pressure.
Wrapped forged steel flanges with plastic foam.
Packed ASTM A105 weld neck flanges into wooden cases or pallets.
Tagged labers on the outside of the package for easy indentification.

Inspection of Low Pressure Flanges

Visual the surface. Such as dents, die marks, porosity, undercuts.
Check the marking. Such as size, material grade, pressure, heat no.
Measure the size. Such as diameter,thickness of flange and raised face.

Advantage of Raised Flange

Reasonable Price
Good Quality
Fast Delivery
Safe Package
Reliable Shipment
